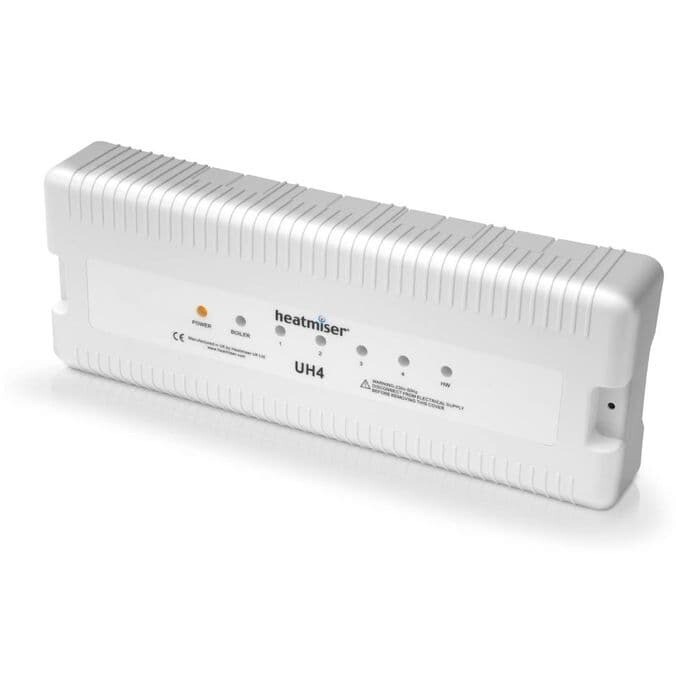

Heatmiser UH4 4 Zone Wiring Centre

Heatmiser UH4 4 Zone Wiring Centre

• Central switching of up to 4 zone actuators.
• Output for hot water cylinder, system boiler and pump.
• Dimensions 384 x 148 x 60mm.
• 2 Year manufacturers warranty.
• Compatible with 230v thermostats.

The Heatmiser UH4 Wiring Centre can be used in conjunction with mains thermostats.

The UH4 provides central switching of up to 4 zones actuators as well as providing an output for a hot water cylinder, the system boiler and pump.

When used for underfloor heating, an option is available to use zone 4 as a conventional radiator zone. Up to 6 actuators can be connected to each zone.
