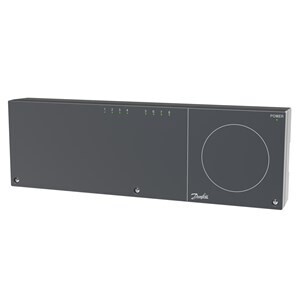

Danfoss Icon² Wiring Center 230v 8 Channels

Danfoss Icon™ 230V Wiring Centre is a connection box for use in hydronic floor heating using 230V thermostats and actuators. The Icon™ 230V Wiring Centre can connect up to 14 thermal actuators from up to 8 room thermostats. It is provided with 230V Live circulation pump output and a voltage-free relays for controlling a boiler. The relays are activated when one or more thermostats require heat. The Wiring Centre also supports away and cooling mode which can be controlled by a 230 V signal as well as LED’s to indicate when outputs are active. Mounting is made easy due to a simple layout of the terminals and clear marking on the screw terminals. Mounting can be done by using screws

Ordering options

Danfoss Icon² 230V Wiring Centre 8 channels F Plug DF088U1040

Danfoss Icon² 230V Wiring Centre 8 Channels J Plug DF088U1041

Danfoss Icon² 230W Wiring Centre 8 Channels DF088U1042 (This option)
