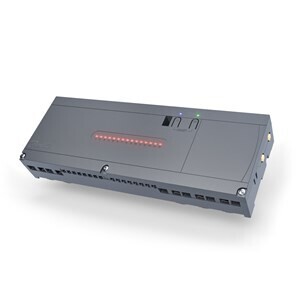

Danfoss Icon² Master Controller - 15 Channels

Danfoss Icon2™ Main Controller is used for floor heating and cooling systems for individual room control. It can be configured as a wired or wireless system or as a combination, if required. The centre of the system is the Danfoss Icon2™ Main Controller, which configures and ties the system together. Installation and set-up of the Danfoss Icon2™ Main Controller is made easy by using the pre-defined application and intuitive commissioning App. The system offer following features (some require Advanced version.): • Automatic balancing (PWM+), which ensure that the hydraulic balancing of the system is done by the master controller based on the actual room demand. • Requires no pre-setting on the manifold. • On/Off control possibility. • NC/NO actuator functionality. • Cooling change over (Basic version only support 2 pipe systems). • Supports 2, 3 or 4 pipe applications in various configurations (3 and 4 pipes systems require Advanced version). • Flow temperature control (require Advanced version), can be set to either a fixed temperature or demand based flow temperature control. • 230 V power output with protected earth for circulation pump. • 230 V power output (for e.g. always on). • Heat demand signal output (for e.g. potential free relay). • Wireless 2,4 GHz. • Powerline communication (for 24V wired thermostats). • Possibility to combine wired and wireless thermostats in same installation. • APP functionality, for iOS and Android devices (require Ally™ GW or compatible Zigbee gateway).
