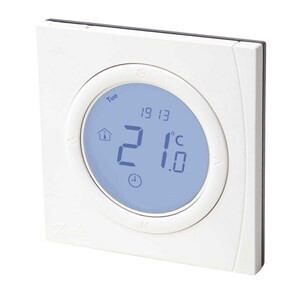

Danfoss BasicPlus² WT-P Programmable Thermostat

Features of room thermostats, WT- D (display) and WT-P (display and programmable):

• Modern design with white back light
• Away function
• Child safety lock

Selectable temperature control modes:

• Room temperature control (default)
• Room with floor temperature limit control
• Floor temperature control

Selectable floor temperature control modes:

• High
• Low

Maximum and minimum limit settings for room and floor temperature.

Optional room temperature display when power is OFF (default setting: no display).

Floor sensor terminals

For thermostats equipped with LCD display, enabling control of maximum floor temperature and reducing the risk of overheated and damaged floors (for specific maximum floor temperatures, refer to the recommendations from floor suppliers).

Frost protection mode

Use this feature instead of turning the thermostat off completely to protect against damages due to low temperatures. The room temperature will be maintained around 5° C.

Temperature calibration

This function allows you to change the temperature set-point of the room thermostat, to compensate for a possible temperature deviation between the room thermostat and, for example, the centre of the room.

Advanced programmable timer

This function allows you to set a timer-controlled program for automatic comfort temperature and energy saving lower setback temperature when standard room comfort temperature is not required.
